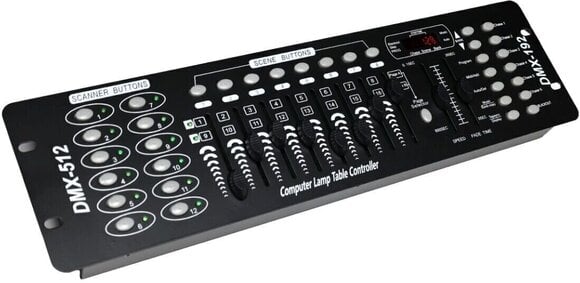

Light4Me DMX 192 MKIII Apgaismojuma kontrolieris, saskarne

LIGHT4ME DMX 192 MKIII is a fader-based DMX controller for stage lighting designed for DJs, bands, clubs and technical crews, allowing convenient control of up to 12 fixtures. During a wedding, concert or corporate event, you can control DMX512-compatible spotlights, moving heads and laser projectors. Memory for 184 scenes and 6 chase sequences makes it easier to prepare color, movement and brightness changes in advance. Choose this model in order to operate an extensive lighting system without using a computer.

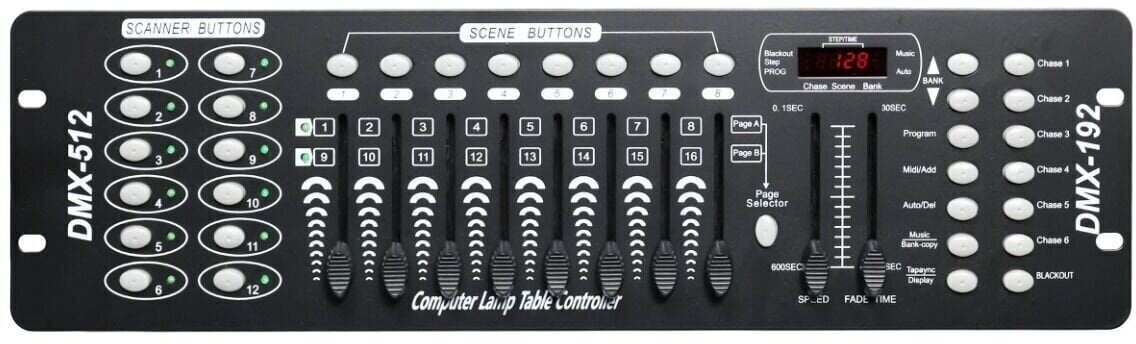

Control of 12 DMX fixtures with quick channel access
The 192 DMX channels are divided into 12 fixed blocks of 16 channels, so each fixture can be selected using a separate Scanner button. Starting addresses 1, 17, 33, 49, 65, 81, 97, 113, 129, 145, 161 and 177 simplify the configuration of spotlights and moving heads. The Copy Scanner function allows settings to be copied between Scanner buttons, speeding up the setup of several similar fixtures.
Eight faders control channels 1-8 or 9-16 after switching with the Page A/B button. Values can be displayed as standard DMX values from 0-255 or as percentages from 0-100%, making both precise programming and quick adjustments during an event easier.

Scenes and chase sequences create organized lighting shows
23 banks with 8 scenes each provide memory for up to 184 lighting settings. The controller allows you to save, copy, modify and delete scenes, copy entire banks and create or edit chase sequences. Each of the 6 chase sequences can contain up to 184 steps and all sequences can be played simultaneously.
After restarting, the controller resumes the last active program, eliminating the need to restore the selected sequence manually each time. Explore the capabilities of this model when preparing recurring parties, concerts or fixed club installations.

Where can LIGHT4ME DMX 192 MKIII be used

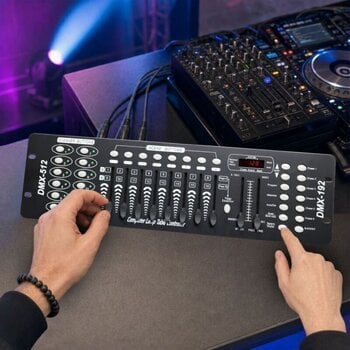

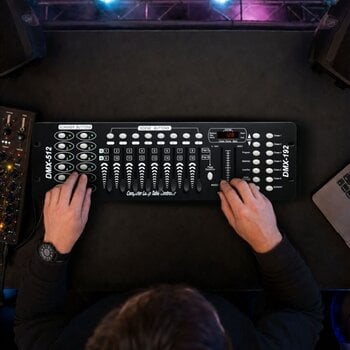

Manual, automatic and sound-controlled modes allow operation to be adapted to the type of event. The built-in microphone synchronizes changes with the music, while the Blackout function instantly turns off all controlled lighting. LIGHT4ME DMX 192 MKIII is a practical solution for mobile DJs, bands, community centers, schools, music clubs and small stages.
The Speed fader and Tap Sync help set the step time from approximately 0.1 second to 10 minutes. The independent Fade Time fader adjusts transitions from 0-30 seconds for all channels or only for Pan/Tilt channels. Movement channels can be assigned separately to each Scanner button, making it easier to control different moving head models.

Clear operation on a desktop or in a 19-inch rack

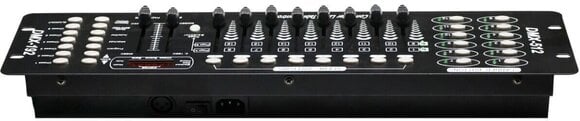

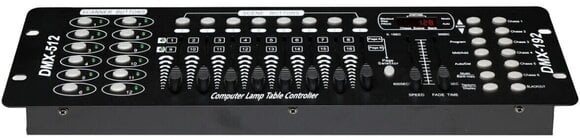

The 4-digit LED display and Blackout, Step, PROG, Auto and Music indicators provide a quick overview of operation. Additional LEDs next to the Scanner buttons show which fixtures are currently selected. The DMX output with a female 3-pin XLR connector allows connection to a standard control line.
The device can be placed on four feet or installed in a 19" 2U rack using the integrated side mounting brackets. The black iron construction has a spray-painted finish, measures 48.2 × 13.3 × 8.2 cm and weighs only 1.6 kg. The controller is intended for indoor use, has an IP20 protection rating and can operate at ambient temperatures up to 45°C.

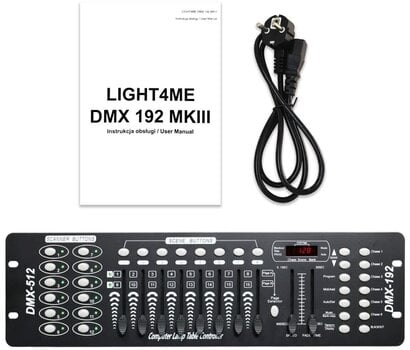

The IEC C14 inlet and detachable power cord with a CEE 7/7 mains plug make setup and transport easier. The package measures 55 × 15 × 9.5 cm and weighs 2 kg with the included accessories, making transport and storage more convenient. Order the controller and prepare complete lighting programs for a wedding, concert or corporate event.

Technical specifications:

• Device type: fader-based DMX controller for stage lighting
• Application: control of spotlights, moving heads, laser projectors and other DMX512-compatible devices
• Control protocol: DMX512
• Number of DMX channels: 192
• Number of supported fixtures: max. 12
• Number of channels per fixture: max. 16
• Channel assignment method: 12 fixed blocks of 16 consecutive DMX channels
• Fixture starting addresses: 1, 17, 33, 49, 65, 81, 97, 113, 129, 145, 161, 177
• Fixture selection buttons: 12 Scanner buttons
• Number of channel faders: 8
• Range controlled by the faders: channels 1-8 or 9-16, selected using the Page Selector button (Page A/B)
• Value display method: DMX values from 0-255 or percentage values from 0-100%
• Number of scene buttons: 8
• Number of scene banks: 23
• Number of scenes: max. 184
• Number of chase sequences: 6
• Number of steps per chase sequence: max. 184 steps
• Simultaneous chase sequence playback: yes, max. 6 sequences
• Programming functions: saving, copying, modifying and deleting scenes; copying scene banks; creating, editing and deleting chase sequences
• Copy Scanner function: copies the configuration of one Scanner button to another
• Automatic program continuation: continues the last active program after the controller is switched on again
• Operating modes: manual, automatic, sound-controlled
• Microphone: built-in, for sound-controlled mode
• Blackout function: yes, instantly turns off the controlled lighting
• Speed adjustment: Speed fader and Tap Sync function
• Step time range: approx. 0.1 s-10 min
• Fade time adjustment: independent Fade Time fader
• Fade time range: 0-30 s
• Fade Time operating range: all channels or assigned Pan/Tilt channels only
• Pan/Tilt channel assignment: programmable, individually for each Scanner button
• Display: 4-digit, 7-segment LED display
• LED indicators next to the display: Blackout, Step, PROG, Auto and Music
• Fixture selection indicators: LEDs next to the Scanner buttons
• DMX output: female 3-pin XLR
• Power supply voltage: AC 100-240V, 50/60 Hz
• Power consumption: 15W
• Fuse: 1A
• Power inlet: IEC C14
• Power cord type: detachable cord with an IEC C13 connector
• Mains plug type: CEE 7/7, type E/F
• Power switch: rocker switch
• Maximum ambient temperature: 45°C
• Place of use: indoor use only
• IP protection rating: IP20
• Construction type: desktop controller with rack-mounting capability
• Mounting format: 19" rack, 2U
• Mounting components: integrated side brackets with mounting holes
• Support feet: 4 feet on the bottom of the enclosure
• Enclosure material: iron
• Enclosure finish: spray-painted
• Color: black
• Device dimensions: 48.2 × 13.3 × 8.2 cm
• Net weight: 1.6 kg
